High Temperature Dust Air Filter Bags For Cement Industry Dust Collection Filter Bag
1. Introduction
Dust bag is a common dust removal equipment, which is composed of several cloth cylinders. Its main materials are synthetic fibers such as polyester fiber, polypropylene fiber and inorganic fibers such as glass fiber. These materials are characterized by high temperature resistance, corrosion resistance, abrasion resistance and so on, so they are very suitable for use in the field of dust removal.
The working principle of dust bag is to utilize the filtering effect to retain the dust and other particles in the air on the surface of the bag, so that the purified gas flows out. In the process of use, the polluted air enters into the dust collector, after pretreatment, it enters into the bag room, after filtering through the dust bag, the purified gas is discharged from the upper part of the bag room, and the dust and other particles are retained on the surface of the bag, and then cleaned up by the cleaning machine for re-use.
2. Classification:
(1) Room temperature bag: room temperature bag is mainly made of polyester, polypropylene, acrylic and other fibers by non-woven, textile technology, with good air permeability, smooth surface, good dimensional stability, easy to peel off the dust and other excellent performance. Mainly used in general industrial enterprises have dust pollution industry dust removal and room temperature flue gas treatment and other fields;
(2) Medium temperature bag: With the country's increased attention to environmental protection, especially the rapid development of bag-type dust removal technology industry, China began to use imported synthetic fibers can be adapted to the more severe working conditions, long service life of high-performance filtration materials. The more common medium-temperature filter materials are aramid fibers, PPS series of fibers through the dip-tie, waterproof, oil-proof, anti-corrosion process, so as to achieve the desired results;
(3) High-temperature bags: high-temperature bags are mainly made of high-temperature-resistant fibers such as P84, texturized glass fibers, ultra-fine glass fibers and other high-temperature fibers processed through textile and non-woven technology, which have the characteristics of good thermal stability, high filtration efficiency and long service life. Mainly used in a variety of high-temperature flue gas conditions in the dust collector; the part of the harsh working environment using DWD high-temperature bag, and ordinary dust collection part of the polyester bag.
3. For example:
| Product Name | FMS | Flomax Coated Filter Media |
| Fibre | P84+glass fibre | P84+glass fibre |
| Base cloth | High Strength Glass Fiber | High Strength Glass Fiber |
| Weight(g/㎡) | 850 | |
| Continuous use temperature(℃) | 280 | |
| Instantaneous use temperature(℃) | 300 | |
| Breaking strength (N/5*20cm) | warp direction | >1800 |
| | weft direction | >1800 |
| Elongation at break(%) | warp direction | <10 |
| | weft direction | <10 |
Air permeation
(m3/m2*min) | 10~15 | 3~6 |
| ir speed(m/min) | <1.0 | <0.8 |
| Application | High temperature resistance, good corrosion resistance, general wear resistance, suitable for filtering low wind speed, small and medium-sized cement kilns. | High temperature resistance, good corrosion resistance, general wear resistance, suitable for filtering low wind speed, small and medium-sized cement kilns. |
4. FAQ
Q: Are you a trading company or a manufacturer?
A: We are a manufacturing company. We are a professional manufacturer of dust removal and conveying equipment with more than 20 years of production.
Q: Where is your factory located?
A: The factory is located in Hebei, China, 50 minutes by rail from Beijing.
Q: Do you offer OEM services?
A: Yes. Any required logo is available.
Q: What is the production capacity of your company?
A: Our factory covers an area of more than 20,000 square meters and produces 2,000 machines a year.
Product Tags:
|
|

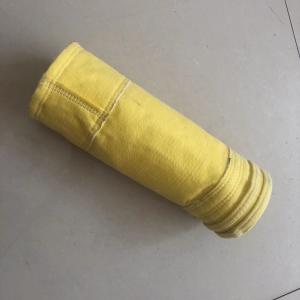

High Temperature Dust Collector Bag Replacement For Cement Industry Dust Collection Filter Bag Images
|
