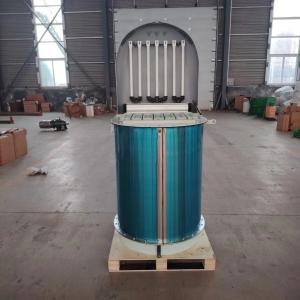

Silo Top Pulse Jet Dust Collector IndustrialFor Cement Plant
1. Product Description
The core working principle of the silo top dust collector is to treat the dusty gas through two main processes: filtration and dust removal. The dusty gas enters into the dust collector box from the air inlet, and the fine dust particles are blocked on the outer wall of the filter bag due to the multiple effects of the filter bag. The purified gas is discharged through the outlet of the upper chamber of the filter bag.
With the growth of the use of time, the dust adsorbed on the surface of the filter bag increases, the permeability of the filter bag is weakened, so that the dust collector resistance is increasing. In order to ensure that the resistance of the dust collector is controlled within a limited range, the pulse controller sends out a signal to open the electromagnetic pulse valve in sequence, so that the compressed air in the air bag is sprayed into the filter bag by the blowing holes of the blowpipe, resulting in rapid expansion and contraction of the filter bag, thus removing the dust adhering to the outer wall of the filter bag.
2. Feature
Standard Stainless Steel Body
High Quality Filter Media
Push-fit Filter Elements
Maintenance Height=1150mm
Easy opening system with hinged cover
3. Data Sheet
| Model | SiloR03E |
| Body Diameter | 800mm |
| Filter Surface | 24.5m2 |
| Air Consumption | 4.5Nm3/h |
| Max. Height When Closed | 1100mm |
| Max. Height When Open | 1850mm |
| Weight | 80kg |
| Material | Carbon Steel/ Stainless Steel |
4. Q&A
Q: Are you a trading company or a manufacturer?
A: We are a manufacturing company. We are a professional manufacturer of dust removal and conveying equipment with more than 20 years of production.
Q: Where is your factory located?
A: The factory is located in Hebei, China, 50 minutes by rail from Beijing.
Q: Do you offer OEM services?
A: Yes. Any required logo is available.
Q: What is the production capacity of your company?
A: Our factory covers an area of more than 20,000 square meters and produces 2,000 machines a year.
Q: Do you provide after-sales service?
A: Yes. Engineer provided.
