Industrial Dust Collector Ash Discharge Valve 304 Stainless Steel Rotary Discharge Machine

Industrial dust collector ash discharge valve 304 stainless steel rotary discharge device 2024 new product

The star discharger is mainly used to install at the discharge port of the discharger working under negative pressure. The upper part accepts the material discharged by the discharger, and relies on the rotating impeller to transport the material and act as a seal to prevent air from being inhaled from the discharge port during the pneumatic conveying process to ensure the normal discharge of the discharger.The working principle of the star discharger is to use the electric deceleration motor to drive the star wheel to rotate, so as to realize the conveying of materials. The speed motor and the star wheel are connected by a flange connection and are fixed together by bolts. Driven by the deceleration motor, the star wheel rotates in a certain direction to transport the material from the feed port to the discharge port. The structure of star discharger is mainly composed of motor, reducer, star wheel, shell and so on. Among them, the motor is the core component that drives the operation of the entire system, and the reducer reduces the speed of the motor to the speed suitable for the rotation of the star wheel. The star wheel is a part that is directly in contact with the material, and its shape and structure are related to the size and nature of the material.

Industrial ash discharge valve

dust collector ash discharge valve

stainless steel rotary discharge machine

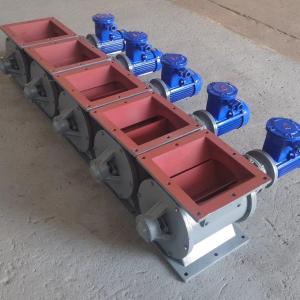

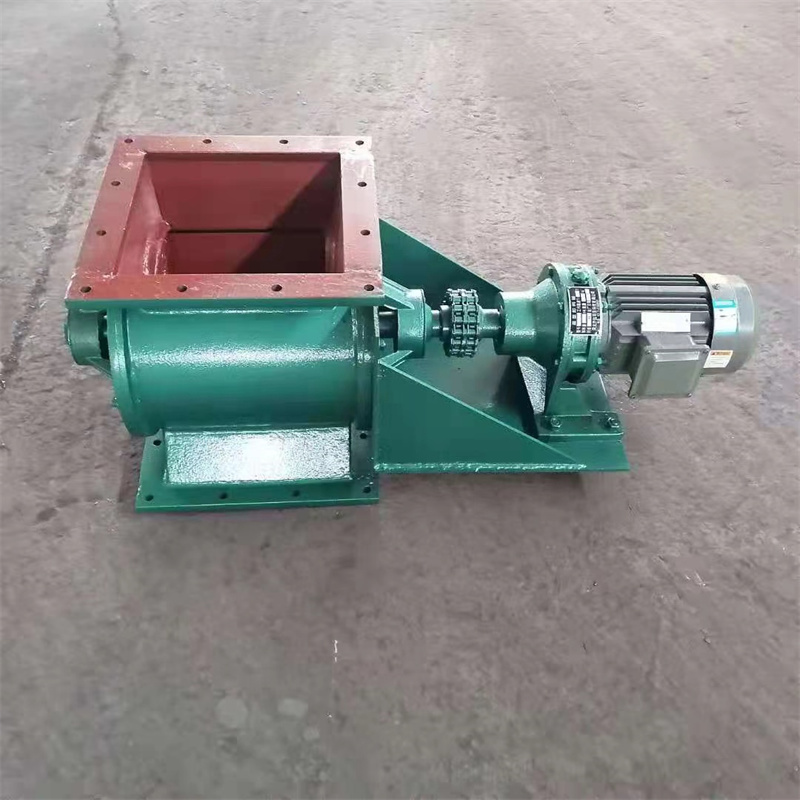

Industrial Dust Collector Ash Discharge Valve 304 Stainless Steel Rotary Discharge Machine Images
