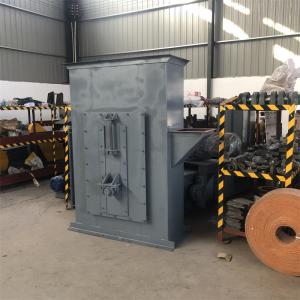

Industrial Graphite Production Line NE Bucket Elevator Customized

  • 1
  • 2

Brand Name : QiaoDa

Model Number : NE15

Certification : YES

Place of Origin : China

MOQ : 1PC

Price : $5800

Payment Terms : T/T

Supply Ability : 20 units per month

Delivery Time : 15 word days

Packaging Details : Consultation with customers

Size : Customized

Structure : Integrated

Power : As required

Model : NE15

Lifting capacity : 200

Delivery capacity : 200

Tape speed : 15

Power Supply : 220V/380V

Maintenance : Easy

Features : Durable

Conveying Speed : 0.4-0.7m/s

Frame Material : Steel

Warranty : 1 year

Contact Now

Industrial graphite production line NE bucket elevator is a continuous conveying machine that uses a series of
hoppers uniformly fixed on the endless traction members to vertically lift materials. Bucket elevator uses a series
of hoppers fixed on the traction chain or tape to transport bulk materials upward in the vertical or near-vertical
direction. Divided into ring chain, plate chain and belt three. The hopper scoops the material from the storage
below, and as the conveyor belt or chain is raised to the top, it flips down around the jacking wheel, and the
bucket elevator dumps the material into the receiving tank. The transmission belt of the bucket elevator with
transmission is generally made of rubber belt, which is installed on the transmission drum under or above and
the reversing drum above and below. Chain driven bucket elevators are generally equipped with two parallel
transmission chains, with a pair of transmission sprockets above or below, and a pair of directional sprockets
below or above. Bucket elevators are generally equipped with a housing to prevent dust from flying in the
bucket elevator.

Model number TID160 TD250 TD315 TD400
Hopper form Q h zD Sd Q h zD Sd Q h zD Sd Q h zD Sd
Delivery capacity(m3/h) 5.4 9.6 9.6 16 12 22 23 35 17 30 25 40 24 46 41 66
bucket(mm) 160 250 315 400
A surname(L) 0.5 0.9 4.2 1.9 1.3 2.2 3.0 4.6 2 3.6 3.8 5.8 3.1 5.6 5.9 9.4
Pitch of buckets(mm) 280 350 360 450 400 500 480 560
bandwidth(mm) 200 300 400 500
Bucket speed(m/s) 1.4 1.6 1.6 1.8
Material quantity particle(mm) 25 35 45 55
Model number TID500 TD630 TD160 TD250 TD350 TD450
Hopper form Q h zD Sd h zD Sd Q s Q S Q S Q S
Delivery capacity(m3/h) 38 70 58 92 85 89 142 4.7 8 18 22 25 42 50 72
bucket(mm) 500 630 160 250 350 450
A surname(L) 4.8 9 9.3 15 14 14.6 23.5 0.65 1.1 2.6 3.2 7 7.8 14.5 15
Pitch of buckets(mm) 500 625 710 300 400 500 640
bandwidth(mm) 500 700 200 300 400 500
Bucket speed(m/s) 1.8 2 1 1.25 1.25 1.25
Material quantity particle(mm) 60 70 25 35 45 55
